Instructions for Platform Lift Storage Mechanism

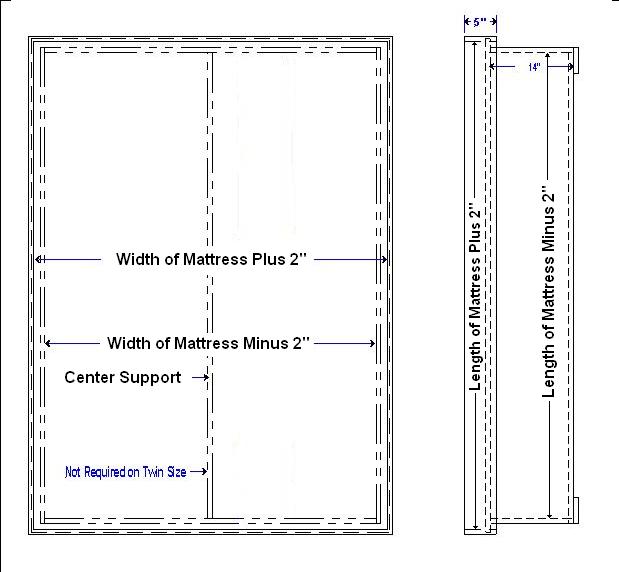

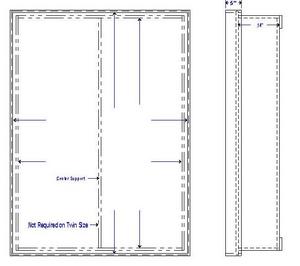

The Selby Type “ST” lift mechanism is intended to be mounted in an existing bed frame or box pedestal. A plan for a box pedestal can be found below
To mount the mechanism frame with concealed mounting fasteners, attach the frame to a 5” wide X ¾ hardwood lumber cleat that is the same length as the two pedestal walls that receive the mechanism. This length will usually be the same as the sides except when a side opening is required. For side opening platforms the mechanism frames are mounted inside on the head and foot of the bed frame or pedestal.
1.

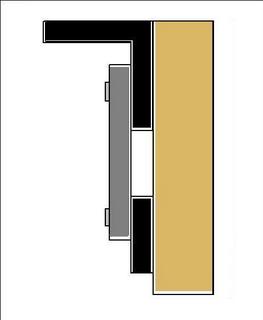

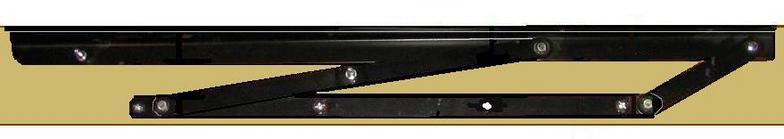

Place the mechanism on the 5” wide cleat with the top angle flush with the edge of the cleat and not closer than 1/8” from either end of the cleat.
Place the mechanism on the 5” wide cleat with the top angle flush with the edge of the cleat and not closer than 1/8” from either end of the cleat.2.Position the mechanism so that the top angle iron and bottom bar are parallel. See illustration.
Position the mechanism so that the top angle iron and bottom bar are parallel. See illustration.
3.Mark the position of the four holes in the bottom bar of the mechanism on the cleat.
Mark the position of the four holes in the bottom bar of the mechanism on the cleat.4.Remove the mechanism from the cleat and drill four holes to fit the screws included with your kit.
Remove the mechanism from the cleat and drill four holes to fit the screws included with your kit.5.Assemble the right and left mechanism to the right and left cleat and tighten the mounting screws
Assemble the right and left mechanism to the right and left cleat and tighten the mounting screws6.Position the cleats against the inside of the pedestal or bed frame so that the top edge of the cleat and the side wall are flush. Glue and screw into place. No fasteners should be visible on the outside of the b pedestal or bed frame.
Position the cleats against the inside of the pedestal or bed frame so that the top edge of the cleat and the side wall are flush. Glue and screw into place. No fasteners should be visible on the outside of the b pedestal or bed frame.7.Place AND center the platform on the pedestal. Carefully lift the top and mechanism arms and mark the hole locations. ( a couple of small ‘C’ claps may be helpful here. Fasten the top to the mechanisms and perform an open and close cycle to insure that there is no interference.
Place AND center the platform on the pedestal. Carefully lift the top and mechanism arms and mark the hole locations. ( a couple of small ‘C’ claps may be helpful here. Fasten the top to the mechanisms and perform an open and close cycle to insure that there is no interference. 8.The platform will move laterally as it lifts for easy access.
The platform will move laterally as it lifts for easy access.9.For maximum security add a bottom to the pedestal and install a hooked cam, cam lock to secure the pedestal top.
For maximum security add a bottom to the pedestal and install a hooked cam, cam lock to secure the pedestal top.A two page catalog sheet with mechanism specifications is available from your Selby Furniture Hardware Distributor.
Click Image to Enlarge
Steel Tubular Platform Lift Bed Complete
Lift Mechanism
Metal bed frame

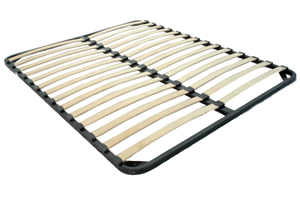

European Beech Slat Foundation
+
=
